Cloud Storage

The Cloud Storage module keeps the files from /uploads — product images, gallery pictures, editor uploads, generated thumbnails — in external storage: Cloudflare R2, any S3-compatible bucket (AWS S3, MinIO, Hetzner and the like) or a plain FTP server. It frees disk space on the hosting, lets pictures be served from a CDN domain, and works as a file bus between servers when a shop runs on more than one.

The settings page is Modules → Cloud Storage (/admin/cloudstorage). The module's tables are created by php spark cloudstorage:install (run once after installing it from the store; a self-update runs it for you).

How it works

The module does not intercept uploads. Files land in /uploads exactly as before, and the module syncs them afterwards:

• Right after an admin upload — when an admin request carried files, a bounded batch (up to 30 fresh files) is pushed to storage immediately.
• Every 2 minutes — the Scheduler task Cloud storage: sync new files picks up everything the first hook cannot see: thumbnails generated on the storefront, CLI imports, files written on the other server of a two-server setup (up to 300 files per pass).
• Sync now on the settings page runs a larger pass by hand (up to 200 files); the result line tells you how many were sent.

Each synced file is recorded in an index (path, size, modification time). A file that changes locally is re-uploaded; if the Cloudflare module is connected its cached URL is purged so the new version shows up at once.

Serving

Two delivery modes, chosen by the URL rewrite on pages switch:

• Off — addresses stay native (/uploads/...). A file that still exists locally is served by the web server as usual; a file that has no local copy is fetched from storage by the module's built-in proxy under the same address, with 30-day public cache headers (LiteSpeed caches it too). No extra domain is needed.
• On — page HTML is rewritten so /uploads/... links point to the Public base URL (your CDN domain) and the browser goes to storage directly. A link is rewritten only when the local copy is gone and the file is in the index — a local file always wins, so a half-migrated shop renders correctly, and a disabled module simply means everything is local.

Freeing disk space

By default local copies are kept. Tick Delete local copies and, after a file's presence in storage is verified, the local copy is removed — the 2-minute task then gradually offloads the whole /uploads on its own. Turned off again, the proxy restores a local copy the first time a file is requested.

Thumbnail regeneration needs the originals

Regenerating product thumbnails reads the originals from disk. Before doing it on an offloaded shop, bring them back: php spark cloudstorage:restore --prefix shop/products/origin.

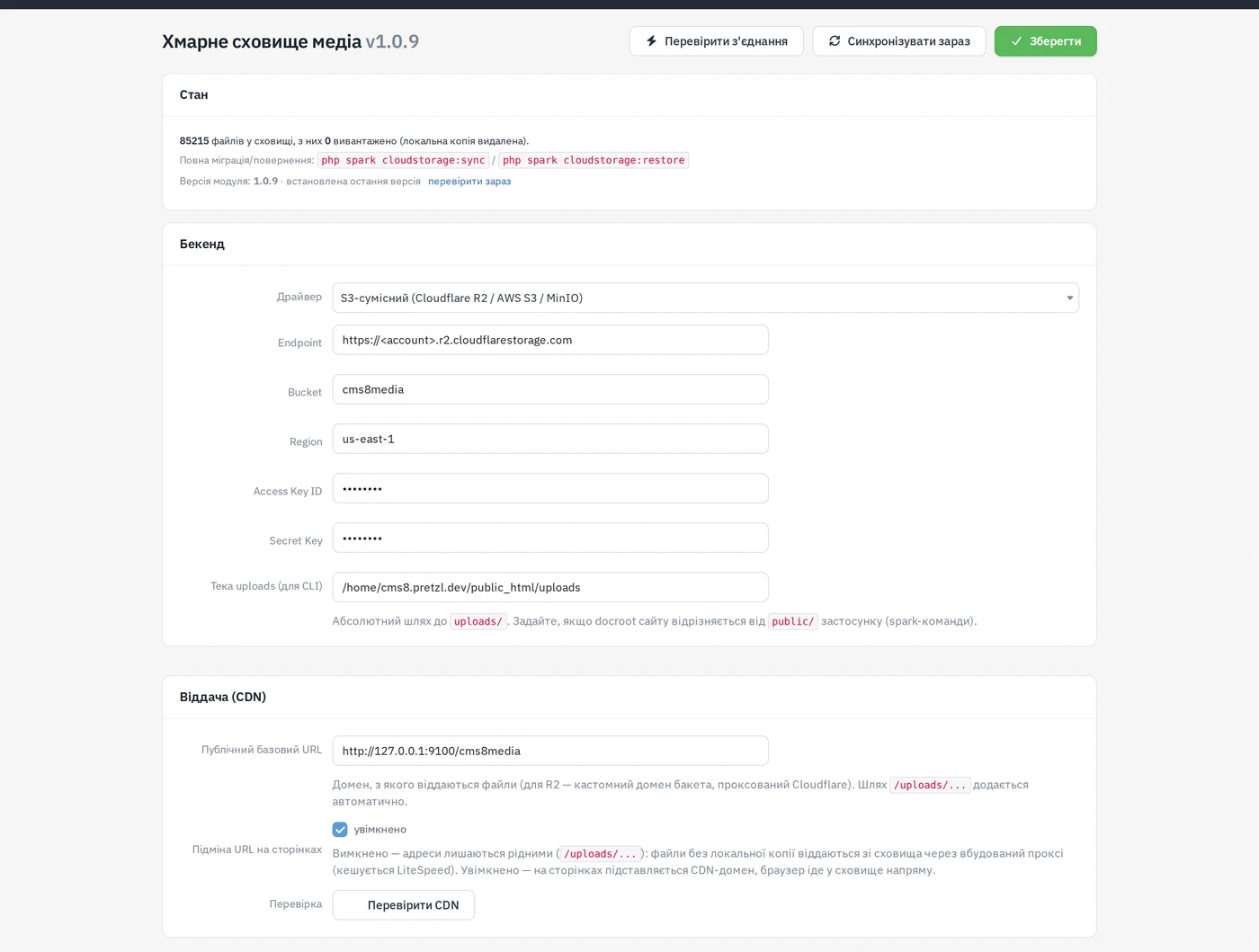

Settings

Backend card:

Field	Meaning
Driver	S3-compatible (Cloudflare R2 / AWS S3 / MinIO) or FTP server.
Endpoint, Bucket, Region, Access Key ID, Secret Key	S3 credentials. Region auto for R2. Leave the secret empty to keep the stored one.
FTP host / port, User, Password, Root folder	FTP credentials and the directory files go under.
Uploads folder (for CLI)	Absolute path to uploads/; set it when the site's document root differs from the application's public/ — the spark commands need it.

Delivery (CDN) card:

Field	Meaning
Public base URL	Domain files are served from (for R2 — the bucket's custom domain behind Cloudflare). /uploads/... is appended automatically.
URL rewrite on pages	The two delivery modes above.
Check CDN	Runs the whole chain — test upload, anonymous read from storage, base URL, DNS, end-to-end fetch — and offers fixes: Use the direct storage address, Open public read (uploads/*) for the bucket, Connect the domain through Cloudflare for R2.

Sync card:

Field	Meaning
Delete local copies	Offload mode, see above.
Exclusions (prefixes)	Paths relative to uploads/, one per line (e.g. shop/products/origin, cmlTemp) that are never synced or offloaded.

The toolbar has Test connection (checks that the credentials, bucket and endpoint line up), Sync now, Save, and an Update module button that appears when the store has a newer version. The Status card counts files in storage and how many are offloaded.

Migration and rollback (command line)

Command	What it does
php spark cloudstorage:sync	Full migration of /uploads to storage. Options: --prefix, --limit, --offload / --keep-local (override the setting for this run), --dry-run.
php spark cloudstorage:restore	Downloads offloaded files back to /uploads (--prefix, --limit). Files come back byte-identical.
php spark cloudstorage:quick	The bounded pass the scheduler runs (--limit, default 300).

A typical R2 setup

Create the bucket, fill in the S3 fields with region auto, save, press Test connection, then Check CDN — it tells you whether the bucket is readable and whether the public domain resolves, and offers the fix. Keep Delete local copies off until the first full cloudstorage:sync has finished and the pages look right.
